AB Ashlar Blend
A mixed-sized retaining wall block system from Allan Block

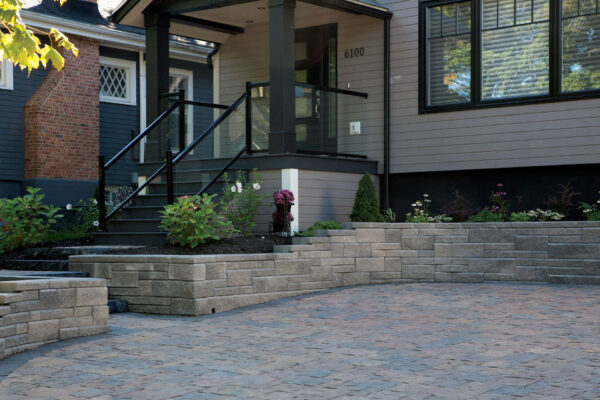

AB Ashlar Blend from Allan Block creates beautiful patterns by blending its different modular shapes together in random or pre-set patterns. Whichever way you stack it, the result is a classic retaining wall block wall that is, definitively, your own.
AB Ashlar Blend from Allan Block gives a smooth fluid finish in retaining walls for any outdoor living space. Featuring a built-in interlock and setback, these retaining wall blocks are easy to install without any special materials or tools. The hollow core offers superior drainage and easier handling for a faster installation.
Rectangular, square, thin – all working together
This retaining wall block system installs with a six-degree setback and includes corner units and coping units for the top. AB Ashlar Blend from Allan Block is available in the nature-inspired colour, Natural Charcoal. For installation and more information visit allanblock.com
Whether you are installing the retaining wall blocks yourself or using a qualified contractor, we recommend you visit your local Shaw Retail Centre or one of our independent dealers for helpful hints and project assistance.
Specifications
Shapes & Sizes
Classic
17.625-L x 12-W x 7.5-H in 448-L x 305-W x 190-H mm
Jumbo Junior
9-L x 9.5-W x 7.5-H in 228-L x 242-W x 190-H mm
Lite Stone
17.625-L x 12-W x 3.75-H in 448-L x 305-W x 95-H mm
Corner
16-L x 8-W x 7.5-H in 406-L x 203-W x 190-H mm
Cap
17.625-L x 12-W x 4-H in 448-L x 305-W x 95-H mm
Packaging
Classic
Pieces per Pallet | 40 |
---|---|
Weight per Unit | 75 lbs 34 kg |
Unit Coverage | 0.92 sq. ft. |
Pallet Coverage | 37 sq. ft. |
Weight per Pallet | 3000 lbs 1360 kg |
Jumbo Junior
Pieces per Pallet | 100 |
---|---|
Weight per Unit | 35.8 lbs 16.3 kg |
Unit Coverage | 0.47 sq. ft. |
Pallet Coverage | 47 sq. ft. |
Weight per Pallet | 3520 lbs 1630 kg |
Lite Stone
Pieces per Pallet | 80 |
---|---|
Weight per Unit | 35 lbs 16 kg |
Unit Coverage | 0.46 sq. ft. |
Pallet Coverage | 37 sq. ft. |
Weight per Pallet | 2800 lbs 1280 kg |
Corner
Pieces per Pallet | 48 |
---|---|
Weight per Unit | 50 lbs 23 kg |
Weight per Pallet | 2400 lbs 1104 kg |
Cap
Pieces per Pallet | 64 |
---|---|
Weight per Unit | 57 lbs 25 kg |
Unit Coverage | 1.47 linear foot |
Pallet Coverage | 94 linear foot |
Weight per Pallet | 3648 lbs 1600 kg |
